LEDB260 Medical Operating Examination LED Lamp of Wall Type
Introduction
LED260 examination lamp series is available in three installation ways, mobile,ceiling and wall mounting.
LEDB260, this model name is refers to wall type examination lamp.
The lamp housing is made of new aluminum alloy material, which is easy to dissipate heat. Fully enclosed design, no screws exposed. There are 20 OSRAM bulbs in total. This examination lamp is mixed white light and yellow light, providing up to 80,000 illuminance and a color temperature of about 4500K. The handle can be disassembled and sterilized. But the spot size cannot be adjusted.
Apply to
■ Outpatient Room
■ Veterinarian Clinics
■ Examination rooms
■ Emergency rooms
■ Humanitarian Relief Organizations
Examination Lamp can be used for ENT(Eyes, Nose, Throat), dental, gynecological, dermatological, medical cosmetic,vet outpatient examinations and minor surgeries
Feature
1. Alternative Choice for Low Ceiling Room
For some space limited examination room, wall mounted examination lamp is a good alternative choice
2. Self-developed Lens
Powerful lens system, each with one LED self-developped lens, which provides excellent light transmission and great focus ability,making the details in the wound area more distinguish.

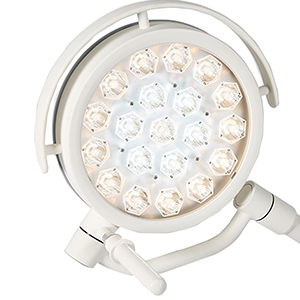

3. Mixed with White and Yellow Light Osram Bulbs
The bulb has two colors, yellow and white. After yellow light and white light are mixed, the color temperature and color rendering index are significantly improved. This examination lamp be used not only in daily inspections, but also in general small operations.
4. Two Disinfection Handles
We provide two handles for users, one for use and the other for spare. It can be dissembled for disinfection.

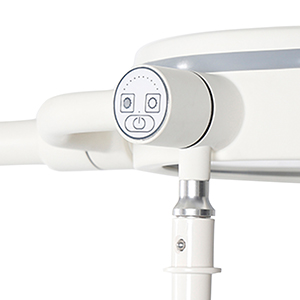

5. Intuitive Control Panel
Classic three-point design, switch, brightness increases, brightness decreases. The illuminance of the examination lamp is adjustable in ten levels.

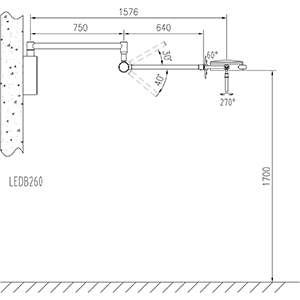

6. Wide Adjustment Range
Independent spring arm provides large angle of motion and radius of action.
Parameters:
|
Name |
LEDB260 Wall Type Examination Lamp |
|
Illumination Intensity (lux) |
40,000-80,000 |
|
Color Temperature (K) |
4000±500 |
|
Color Rendering Index(Ra) |
≥90 |
|
Heat to Light Ratio (mW/m²·lux) |
<3.6 |
|
Illumination Depth (mm) |
>500 |
|
Diameter of Light Spot (mm) |
150 |
|
LED Quantities(pc) |
20 |
|
LED Service Life(h) |
>50,000 |
