TDG-1 Godd Quality Multi-function Electric Operation Table with CE certificates

Short Description:

TDG-1 Electric operating table has five main action groups: electric adjustable bed surface elevation, forward and backward tilt, left and right tilt, back plate elevation, and brake.


Product Detail

Product Tags

Introduction

TDG-1 Electric operating table has five main action groups: electric adjustable bed surface elevation, forward and backward tilt, left and right tilt, back plate elevation, and brake.

Beautiful appearance, body, base, lifting column, and side rails of this electric operating are all made of high-quality stainless steel, with high finish, corrosion resistance and high mechanical strength.

Intelligently adjust various positions of the electric operation table, with one-button control. It adopts LINAK electric actuator, which is silent, precise and low maintenance cost. Large wheel design, quiet and anti-seismic decompression.

This electrical operating table is suitable for various surgery, such as abdominal surgery, obstetrics, gynecology, ENT, urology, anorexic and orthopedics, etc.

Feature

1.Angular Adjustments with Gas Springs

Both the back plate and the leg plate joints of TDG-1 electric operating table are equipped with gas spring cylinder support structures, which make various adjustments gentle, silent, and vibration-free, while effectively protecting the joint structure and preventing the patient from falling.

2.LINAK Electric Linear Actuator

The use of electric push rod eliminates the need for medical staff to manually control the position of the operating table. Only need to hold the remote control, easy and labor saving. Compared with the after-sales maintenance of the hydraulic operating table, the electric operating table also greatly reduces the after-sales maintenance cost. During the adjustment process, the electric push rod can be positioned more accurately, and the adjustment process is extremely silent.

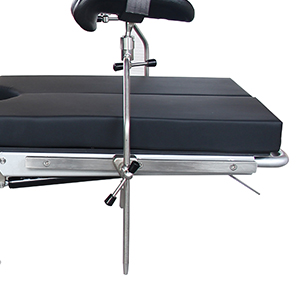

Electrical-Medical-Operating-Table

Angular Adjustments with Gas Springs

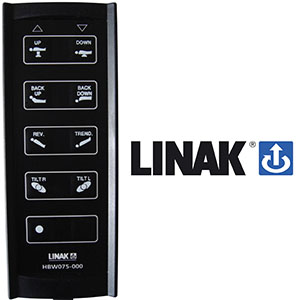

Cheap-Price-Electric-Operating-Table

LINAK Electric Linear Actuator

3. Y Type Base

The bed base adopts a Y-shaped design, which not only conforms to the ergonomic design, enhances the stability of the electric operating table, but also provides more free leg space for medical staff, allowing medical staff to approach the patient more closer.

4. Versatile Accessories

Equipped with shoulder straps, wrist straps, leg straps, and body straps to ensure that patients under general anesthesia will not fall during surgery. The leg plates, arm rests, body supports and leg supports are all equipped with memory foam pads to ensure the comfort of the operation and the normal circulation of body fluids during the operation.

5. Larger caster design

The base of the mechanical electric operating table is designed with large casters (diameter 100mm), which is flexible to move. The casters rise when braking, the bed base is in firm contact with the ground, and the stability is good.

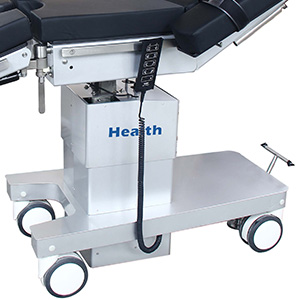

Electric-Operation-Table

Y Type Base

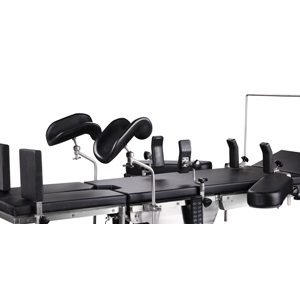

Electric-Operating-Table -Price

Versatile Accessories

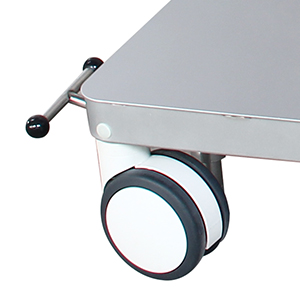

China-Electric-Operating-Table

Larger caster design

6.Built-in Battery

In case of power failure, the built-in battery can support 50 operations.

Parameters

ModelItem TDG-1 Electric Operation Table
Length and Width 2050mm*500mm
Elevation( Up and Down) 890mm/ 690mm
Head Plate (Up and Down) 60°/  60°
Back Plate (Up and Down) 90°/ 17°
Leg Plate (Up /Down/ Outward) 30°/ 90°/ 90°
Trendelenburg/Reverse Trendelenburg 25°/ 11°
Lateral Tilt (Left and Right) 20°/ 20°
Kidney Bridge Elevation ≥110mm
Flex/ Reflex Combination Operation
Control Panel Optional
Electro-motor system Linak
Voltage 220V/110V
Frequency 50Hz / 60Hz
Power Compacity 1.0 KW
Battery Yes
Mattress Memory Mattress
Main Material 304 Stainless Steel
Maximum Load Capacity 200 KG
Warranty 1 Year

Standard Accessories

No. Name Quantities
1 Anesthesia Screen 1 piece
2 Body Support 1 pair
3 Arm Support 1 pair
4 Leg Support 1 pair
5 Kidney Bridge Handle 1 piece
6 Mattress 1 Set
7 Hand Remote 1 piece
8 Power Line 1 piece
