LEDB500 Wall-mounted LED Operation Lamp with CE Certificates,OT Lamp

Short Description:

LED500 operation lamp series is available in three ways, ceiling mounted, mobile and wall mounted.

This operation lamp provides adjustable illuminance from 40,000 to 120,000lux, adjustable color temperature from 3500 to 5000K and CRI over 90 Ra.


Product Detail

Product Tags

Introduction

LED500 operation lamp series is available in three ways, ceiling mounted, mobile and wall mounted.
LEDB500 refers to wall mounted operation lamp.
New aluminum alloy housing contains 54 Osram bulbs in yellow and white. Each bulb is with independent lens. This operation lamp provides adjustable illuminance from 40,000 to 120,000lux, adjustable color temperature from 3500 to 5000K and CRI over 90 Ra. The operation panel is LCD Touch Screen. Disinfection handle is resistant to high-temperature and high-pressure. There are three options for spring arms, suitable for people with different budgets.

Apply to

■ Heart/ Vascular/ Thoracic Surgery
■ Neurosurgery
■ Orthopaedics
■ Traumatology/ Emergency OR
■ Urology
■ ENT/ Ophthalmology
■ Endoscopy Angiography
■ Outpatient

Feature

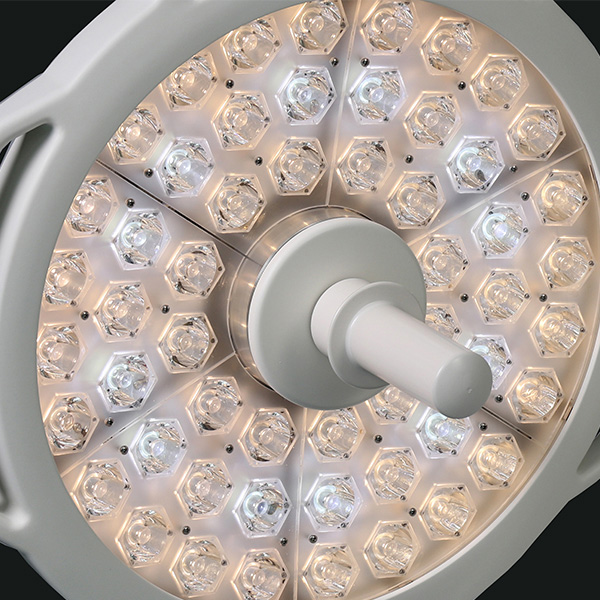

1. Six Modules of OSRAM Bulbs with Two Colors

The bulbs of operation lamp are evenly distributed in yellow and white colors. During the adjustment process, the color temperature changes significantly. Cold light and warm light are suitable for different surgical needs.

Operation-Lamp -with-CE -Certificates

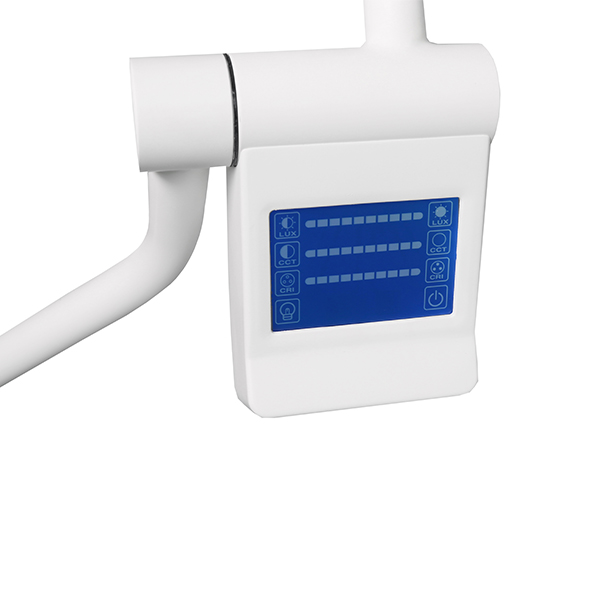

2. User-friendly LCD Touchscreen Control Panel

The color temperature, lighting intensity and color rendering index of the operation lamp can be changed synchronously through the LCD control panel.

3. Endo Mode

A special endoscope lighting can be used for minimally invasive surgical procedures

Wall-mounted -LED-Operation -Lamp

4. Alternative Choice for Low Ceiling Room

For some operation room with extremely low height, you can choose wall mounted operation lamp.

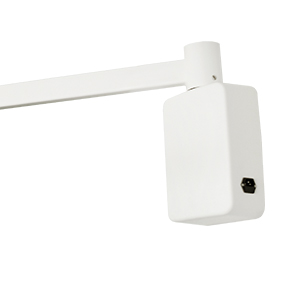

5. Two Ways to Connect Power Supply

There are two ways to connect the switching power supply. If the power cord is not reserved on the wall, you can connect the power supply through an external interface

Wall-Mounted-Surgical-Light

6. Two Choices for Spring Arm

You can choose imported spring arms or our self-made square spring arms, with different prices, suitable for different consumers.

7. Fast Installation

All joints only need to be connected to the plug-in unit, except for the spring arm that needs to adjust the resistance, and no extra debugging is required.

Parameters:

Description

LEDB500 Wall Operation Lamp

Illumination Intensity (lux)

40,000-120,000

Color Temperature (K)

3500-5000K

Color Rendering Index(Ra)

85-95

Heat to Light Ratio (mW/m²·lux)

<3.6

Illumination Depth (mm)

>1400

Diameter of Light Spot (mm)

120-300

LED Quantities(pc)

54

LED Service Life(h)

>50,000
