DD700 Ceiling Reflector Operating Light with Camera and Monitor
Introduction
D700 Reflector operating light is available in three ways, ceiling mounted, mobile and wall mounted.
DD700 refers to single arm reflector operating light.
This reflector operating light contains 3800 mirrors. It can providing up to 16,000 illuminance, and high CRI over 96 and over 4000K color temperature. Manual adjustable focus, 12-30cm, which can meet the needs of spinal surgery with small incision to large-scale burn surgery.
Apply to
■ Surgical centers
■ Trauma centers
■ Emergency rooms
■ Clinics
■ Veterinarian surgical suites
Feature
1. Imported Dust-free Glass
Dust-free glass is imported from South Korea. It is made of professional medical materials, very anti-static.
2. Imported Heat-Insulation Glass
Use six pieces of imported heat insulation glass, the temperature rise of the operation field does not exceed 10 degrees, and the temperature rise of the doctor's head does not exceed 2 degrees.

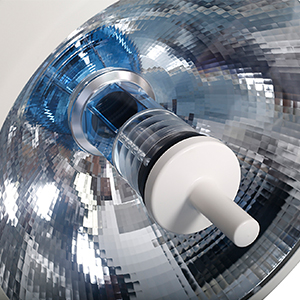

3. Quality Reflectors
The reflector is made of non-ferrous metal materials at one time and has a deep anti-oxidation treatment (non-coated) to ensure that it will not oxidize and fall off for a long time.

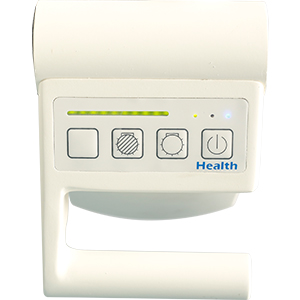

4. Powerful Switch Box
Ten-level brightness selection.
Brightness memory function
Power status, auxiliary lamp detection, main lamp failure indicator.
5. Fast Switching
When the main lamp fails, the auxiliary lamp will be automatically lit within 0.3 seconds, and the light intensity and spot will not be affected.
6. Continuous and Stable illumination
The multi-mirror reflection system minimizes the loss of light intensity and produces an illumination depth of more than 1400mm, which can obtain continuous and stable illumination from the initial incision to the deepest surgical cavity.

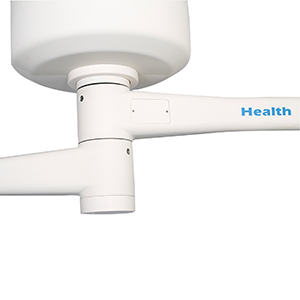

7. Light-Weight Suspension Arm
Suspension arm with light-weight structure and flexible design is easy for angling and positioning.
8. Customized Solutions
We can provide customized design solutions for operation rooms with high or low heights. No additional cost.
Parameters:
|
Description |
DD700 Reflector Operating Light |
|
Diameter |
>= 70cm |
|
Illuminance |
90,000- 160,000 lux |
|
Color Temperature (K) |
4500±500 |
|
Color Rendering Index(Ra) |
92-96 |
|
Illumination Depth (mm) |
>1400 |
|
Diameter of Light Spot (mm) |
120-300 |
|
Mirrors(pc) |
3800 |
|
Service Life(h) |
>1,000 |
