LEDD620 Ceiling LED Single Head Medical light with LCD Control Panel

Short Description:

LED620 LED Medical Light is available in three ways, ceiling mounted, mobile and wall mounted.

LEDD620 refers to single dome ceiling mounted LED Medical Light.

Send email to us

Product Detail

Product Tags

Introduction

LED620 LED Medical Light is available in three ways, ceiling mounted, mobile and wall mounted.
LEDD620 refers to single dome ceiling mounted LED Medical Light.
New product, which has been upgraded on the basis of the original product. Aluminum alloy shell, upgraded internal structure, better heat dissipation effect. 7 lamp modules, a total of 72 bulbs, two colors of yellow and white, high-quality Osram bulbs, color temperature 3500-5000K adjustable, CRI higher than 90, illuminance can reach 150,000 Lux. The operation panel is LCD touch screen, illuminance, color temperature , CRI refers to linkage changes. The suspension arms can be moved flexibly and positioned accurately.

Apply to

■ abdominal/ general surgery
■ gynaecology
■ heart/ vascular/ thoracic surgery
■ neurosurgery
■ orthopaedics
■ traumatology / emergency OR
■ urology / TURP
■ ent/ Ophthalmology
■ endoscopy Angiography

Feature

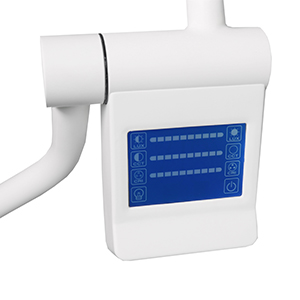

1. User-friendly LCD Touchscreen Control Panel

The color temperature, lighting intensity and color rendering index of the LED Medical Light can be changed synchronously through the LCD control panel.

2. Endo Mode

A special endoscope lighting can be used for minimally invasive surgical procedures.

3. Self-developed Lenses

Different from other manufacturers who buying simple lenses, we invest a lot to develop a unique lenses with better comdensing performance. Seperated LED bulbs with its own lens, create its own light field. The overlapping of different light beam makes the light spot more uniform and significantly reduces the shadow rate.

4. High Display LED Bulbs

The high display bulb increases the sharp comparison between the blood and other tissues and organs of the human body, making the doctor's vision clearer.

4. Free Movement

The 360 universal joint allows the medical light head to rotate freely around its own axis, and provides greater freedom of movement and unrestricted positioning options in low rooms.

5. Customized Solutions

We can provide customized design solutions for operation rooms with high or low heights. No additional cost.

6. Upgrade Needs

Parameters:

Description	LEDD620 LED Medical Light
Illumination Intensity (lux)	60,000-150,000
Color Temperature (K)	3500-5000K
Color Rendering Index(Ra)	85-97
Heat to Light Ratio (mW/m²·lux)	<3.6
Illumination Depth (mm)	>1400
Diameter of Light Spot (mm)	120-260
LED Quantities(pc)	72
LED Service Life(h)	>50,000
