TY Stainless Steel Manual Hydraulic Surgery Table for Operating Room

Short Description:

TY manual operating table is suitable for thoracic and abdominal surgery, ENT, obstetrics and gynecology, urology and orthopedics, etc.

The frame, column and base are stainless steel, easy to clean and corrosion resistant.




Product Detail

Product Tags

Introduction

TY manual operating table is suitable for thoracic and abdominal surgery, ENT, obstetrics and gynecology, urology and orthopedics, etc.

The frame, column and base are stainless steel, easy to clean and corrosion resistant.

The mechanical operating table is raised and lowered with a pedal oil pump, which runs smoothly and is safe and reliable. All other movements are operated by mechanical gears.

This hydraulic operating table requires that the leg plate can be folded down, abducted and detachable, and it is easy to adjust. It adopts a T-shaped base.

Feature

1. Rotation Function

The manual operating table can be rotated 360°, doctors can adjust the angle according to their posture during surgery, which greatly increases the operating space during surgery. (Optional)

2. Quick Switch to Flex Position

The operating table requires a 200° protrusion (flexion) on the table surface at one time by operating the handle, which can be used to replace the lumbar bridge function.

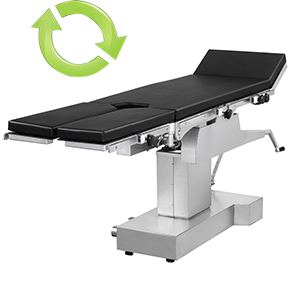

Stainless-Steel-Manual-Surgery-Table

1. Rotation Function

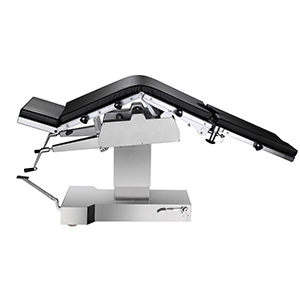

Manual-Operation-Bed

2. Quick Switch to Flex Position

3. Double Layer Tabletop

The tabletop requires double-layer composite tabletop, low X-ray absorption coefficient and high-definition perspective effect.

4. Stainless Steel Material

The frame, base, lifting column, and main transmission structure are all made of 304 stainless steel, which is easy to clean and scrub, resistant to acid and corrosion, ensuring that it will never rust.

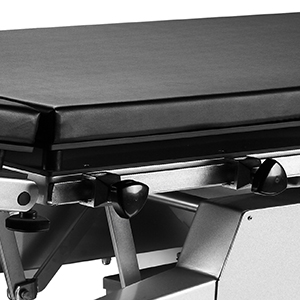

Hydraulic-Operating-Table-3008

3. Double Layer Tabletop

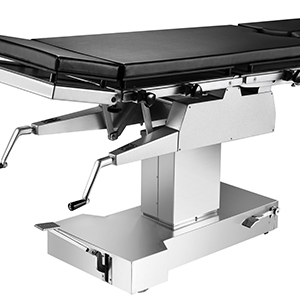

China-Manual-Operating-Table

4. Stainless Steel Material

5. Hydraulic and Manual Adjustment

The lifting and lowering of the hydraulic operating table adopts the pedal oil pump type, which runs smoothly and is safe and reliable. All other movements are operated by the mechanical gear transmission head.

Parameters

Model  Item TY Manual Operating Table
Length and Width 2020mm*500mm
Elevation( Up and Down) 1010mm/ 760mm
Head Plate (Up and Down) 45°/70°
Back Plate (Up and Down) 75°/ 15°
Leg Plate (Up /Down/ Outward) 15°/ 90°/ 90°
Trendelenburg/Reverse Trendelenburg 25°/ 25°
Lateral Tilt (Left and Right) 20°/ 20°
Kidney Bridge Elevation ≥110mm
Mattress Memory Mattress
Main Material 304 Stainless Steel
Maximum Load Capacity 200 KG
Warranty 1 Year

Standard Accessories

No. Name Quantities
1 Anesthesia Screen 1 Piece
2 Body Support 1 Pair
3 Arm Support 1 Pair
4 Shoulder Rest 1 Pair
5 Knee Crutch 1 Pair
6 Fixing Clamp 1 Set
7 Mattress 1 Set
