TS Manual Hydraulic Surgical Operation Table for Hospital

Short Description:

TS hydraulic surgical table is suitable for thoracic and abdominal surgery, ENT, obstetrics and gynecology, urology and orthopedics, etc.


Product Detail

Product Tags

Introduction

TS hydraulic surgical table is suitable for thoracic and abdominal surgery, ENT, obstetrics and gynecology, urology and orthopedics, etc.

Different from the general manual operating table, we use a hydraulic lifting system and a gas spring to adjust the back and leg plates. Make the adjustment process both silent and convenient.

The Y-shaped base is used to ensure the hydraulic operating table has higher stability and free space, so that the medical staff can approach the patient at zero distance.

The design of the large wheels also makes it anti-vibration and decompression during movement.

Feature

1. Advanced Memory Foam

The surface material of hydraulic surgical table is flame retardant and anti-static. The molded polyurethane (PU) mattress is easy to clean and has a long service life.

2. Built-in Kidney Bridge.

Insert a handle into the correspond hole, rotate handle and make waist bridge ascend or descend to suitable position, then pull out the handle. For TS hydraulic operating table, the elevation of  waist bridge is over 100mm.

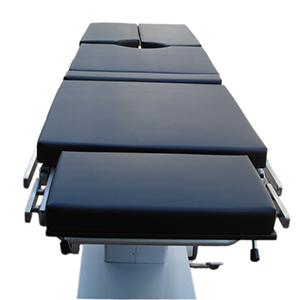

Mechanical-Hydraulic-Operating-Table

Advanced Memory Foam

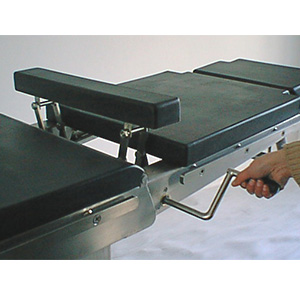

Hydraulic-Manual-Surgical-Table

Built-in Kidney Bridge

3. Imported Hydraulic System

Imported hydraulic system from America makes the movement of the manual operation table stable and fast.

4. Angular Adjustments with Gas Springs

Both the back plate and the leg plate joints of TS hydraulic operating table are equipped with gas spring cylinder support structures, which make various adjustments gentle, silent, and vibration-free, while effectively protecting the joint structure and preventing the patient from falling.

5. Larger caster design

The base of the mechanical hydraulic operating table is designed with large casters (diameter 100mm), which is flexible to move. The casters rise when braking, the bed base is in firm contact with the ground, and the stability is good.

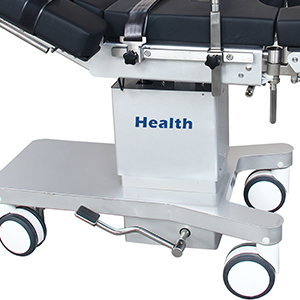

Hydraulic-Manual-Operating-Table

3. Imported Hydraulic System

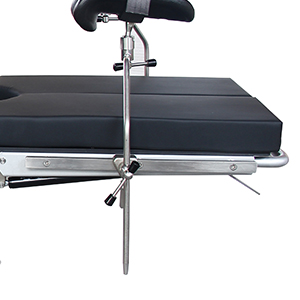

Manual-Hydraulic-Surgical-Operation-Table

4.Angular Adjustments with Gas Springs

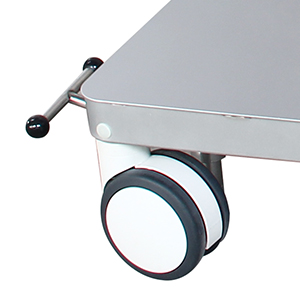

Hydraulic-Surgical-Operation-Table

5.Larger caster design

Parameters

Model  Item TS Hydraulic Operating Table
Length and Width 2050mm*500mm
Elevation( Up and Down) 890mm/ 690mm
Head Plate (Up and Down) 60°/60°
Back Plate (Up and Down) 75°/ 15°
Leg Plate (Up /Down/ Outward) 30°/ 90°/ 90°
Trendelenburg/Reverse Trendelenburg 25°/ 25°
Lateral Tilt (Left and Right) 20°/ 20°
Kidney Bridge Elevation ≥110mm
Mattress Memory Mattress
Main Material 304 Stainless Steel
Maximum Load Capacity 200 KG
Warranty 1 Year

Standard Accessories

No. Name Quantities
1 Anesthesia Screen 1 Piece
2 Body Support 1 Pair
3 Arm Support 1 Pair
4 Shoulder Rest 1 Pair
5 Knee Crutch 1 Pair
6 Fixing Clamp 1 Set
7 Mattress 1 Set
8 Body Strap 1 Set
