TS-D-100 Double Electrical Medical Gas Pendant for Operation Room

Short Description:

TS-D-100 refers to double arm electrical medical gas pendant.

The lifting of the pendant is driven by electricity, which is faster, safer and more reliable.

With double rotating room, the movement range is larger. It will have a better access to the patient.

The length of the rotating arm and the gas outlets , electrical sockets is customized available.

Add exhaust gas and nitrogen oxide interface, which can be upgraded to anesthesia medical pendant.


Product Detail

Product Tags

Introduction

TS-D-100 refers to double arm electrical medical gas pendant.
The lifting of the pendant is driven by electricity, which is faster, safer and more reliable.
With double rotating room, the movement range is larger. It will have a better access to the patient.
The length of the rotating arm and the gas outlets , electrical sockets is customized available.
Add exhaust gas and nitrogen oxide interface, which can be upgraded to anesthesia medical pendant.

Applications

1. Operating Room
2. Intensive Care Unit
3. Emergency Department

Feature

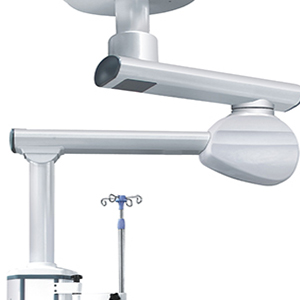

1. Multiple Choice for Double Arm Configuration

A wide range of options for main and sub rotation arms. It is compatible with the operation room with different size.

Medical-Gas-Pendants

Medical Gas Pendants

2. Electrical Lifting

This electrical gas pendant can go up and down by electric driven system.
It is convenient for operation.

3. Environmental protection coating

The external surface is coated with environment friendly paint powder, which is anesthetic, appeal, anti-corrosive, and discoloration resistant.

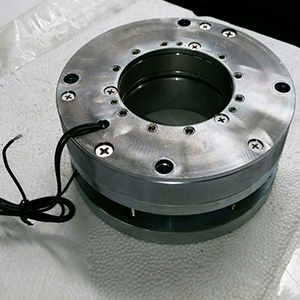

4. Double Brake System

Pneumatic brakes have a risk of air leakage. With electric and damping dual limit system, ensure no drift and air leakage during operation.

Surgery-Gas-Pendant

Surgery Gas Pendant

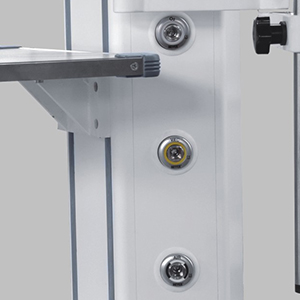

5. Gas Outlets with Different Colors
Different color and shape of the gas interface to prevent wrong connection.
Secondary sealing, three states (on, off, and unplug), more than 20,000 times to use.
And it can be repaired with the air, low maintenance fee.

China-Hospital-Pendant

China Hospital Pendant

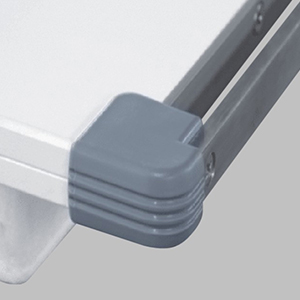

6. Instrument Tray
The instrument tray has a good bearing capacity, and the height can be adjusted as required. It has a silicone anti-collision design, and the drawer is automatic suction type.

Operating-Pendant

Operating Pendant

Parameters:

Length of the arm:
600+800mm,600+1000mm,600+1200mm,800+1200mm,1000+1200mm
Effective working radius:
980mm,1100mm,1380mm,1460mm,1660mm,
Rotation of arm: 0-350°
Rotation of pendant: 0-350°

Description

Model

Configuration

Quantity

Double Arm Electrical Medical Gas Pendant

TS-D-100

Instrument Tray

2

Drawer

1

Oxygen Gas Outlet

2

VAC Gas Outlet

2

Air Gas Outlet

1

Electrical Sockets

6

Equipotential Sockets

2

RJ45 Sockets

1

Stainless Steel Basket

1

IV Pole

1
