TD-Q-100 Single Arm Electric Surgical Endoscopic Pendant for Operation Theatre

Short Description:

TD-DQ-100 refers to single arm electrical surgical endoscopic pendant. This endoscopic pendant can go up and down by electrical driven system. It is widely used in surgical room, emergency room, ICU and recovery room. It mainly used to provide electrical transmission, gas transmission and data transmission services, and place medical equipment.


Product Detail

Product Tags

Introduction

TD-DQ-100 refers to single arm electrical surgical endoscopic pendant. This endoscopic pendant can go up and down by electrical driven system. It is widely used in surgical room, emergency room, ICU and recovery room. It mainly used to provide electrical transmission, gas transmission and data transmission services, and place medical equipment.

Applications

1. Operating Room
2. Emergency Room
3. ICU
4. Recovery Room

Feature

1. Electric Driven System

With electric driven system, the operation is more convenient and faster.

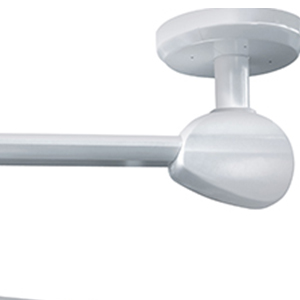

China-Hospital -Pendant

China Hospital Pendant

2. Articulated Arm

The articulated arm body allows the surgical gas pendant to carry more weight and place more instruments.

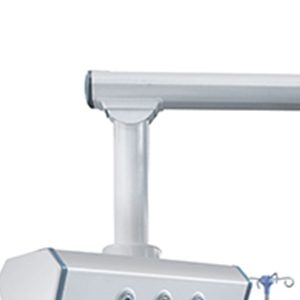

Electric-Surgical -Pendant

Electric Surgical Pendant

3. Gas and Electricity Separation Design

According to strict international standards, the gas and electricity zones are designed separately, ensures the power line and air supply pipeline will not be twisted or fall off accidentally due to the pendant rotation.

4. Instrument Tray

The instrument tray is made of high-strength aluminum alloy profiles, good bearing intensity. There are stainless steel rails on both sides for mounting other equipment. The height of the tray can be adjusted as required. Trays have protective rounded corners

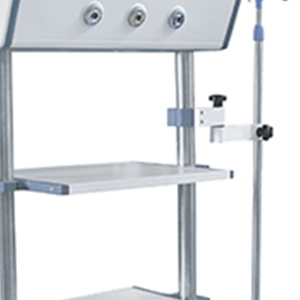

Ceiling-Mounted -Medical-Pendant

Ceiling Mounted Medical Pendant

5. Gas Outlets

Different color and shape of the gas interface to prevent wrong connection. Secondary sealing, three states (on, off, and unplug), more than 20,000 times to use. It can be maintained without air off.

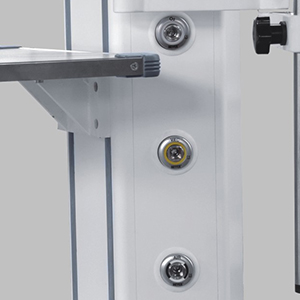

China-Hospital-Pendant

China Hospital Pendant

Parameters:
Length of the arm: 600mm, 800mm, 1000mm, 1200mm
Effective working radius: 480mm, 580mm,780mm,980mm
Rotation of arm: 0-350°
Rotation of pendant: 0-350°

Description

Model

Configuration

Quantity

Single Arm Electrical Medical Endoscopic Pendant

TD-DQ-100

Instrument Tray

2

Drawer

1

Oxygen Gas Outlet

2

VAC Gas Outlet

2

Carbon Dioxide Gas Outlet

1

Electrical Sockets

6

Equipotential Sockets

2

RJ45 Sockets

1

Stainless Steel Basket

1

IV Pole

1



Endoscope Bracket

1
