TS-1 Factory Price Mechanical Operating Table

Short Description:

TS-1 mechanical operating table is made of stainless steel, which has high mechanical strength, corrosion resistance and easy cleaning.

Adjust the height of the bed surface by hydraulic drive, and adjust the angle of the back leg plate with other auxiliary tools.

The T-shaped base of the hydraulic operating table is stable and can also give doctors who work for a long time enough leg space.


Product Detail

Product Tags

Feature

1. T Base

The ergonomic T-shaped base of the manual operating table  not only has good stability and flexible movement, but also provides doctors with enough leg space to reduce fatigue during long-term work.

2. Built-in Kidney Bridge

The built-in lumbar bridge can rise by 110mm, which is convenient for doctors to perform kidney surgery.

3. Various Accessories

The standard accessories include shoulder support, shoulder support, body support, anesthesia screen, and leg support to facilitate various operations.

Medical-Mechanical-Surgical-Operation -Table

1. T Base

Stainless-Steel-Manual-Surgery-Table

2. Built-in Kidney Bridge

Hydraulic-Operation-Table -Price

3. Various Accessories

4. Hydraulic Elevation System

It is hydraulically driven, and the height of the mechanical operating table surface is adjusted by the foot pedal. It runs smoothly and quietly. It can operate normally even if the power is off. For areas with unstable electricity, hydraulic operating tables can be selected.

5. Integral Leg Plate or Split Leg Plate

There is a simple version of the overall leg plate, the price is favorable. There is also a split leg plate, which can be adjusted up and down, and can be expanded outwards to facilitate various lower limb surgery.

Stainless-Steel-Mechanical-Operating-Table

4. Hydraulic Elevation System

Hospital-Mechanical-Operating-Table

5. Integral Leg Plate or Split Leg Plate

Parameters

Model  Item TS-1 Mechanical Operating Table
Length and Width 1980mm*500mm
Elevation( Up and Down) 950mm/ 750mm
Head Plate (Up and Down) 45°/ 90°
Back Plate (Up and Down) 75°/ 30°
Leg Plate (Up /Down/ Outward) 15°/ 90°/ 90°
Trendelenburg/Reverse Trendelenburg 20°/ 30°
Lateral Tilt (Left and Right) 20°/ 20°
Kidney Bridge Elevation ≥110mm
Mattress Memory Mattress
Main Material 304 Stainless Steel
Maximum Load Capacity 200 KG
Warranty 1 Year

Standard Accessories

No. Name Quantities
1 Anesthesia Screen 1 Piece
2 Body Support 1 Pair
3 Arm Support 1 Pair
4 Shoulder Rest 1 Pair
5 Knee Crutch 1 Pair
6 Fixing Clamp 1 Set
7 Mattress 1 Set

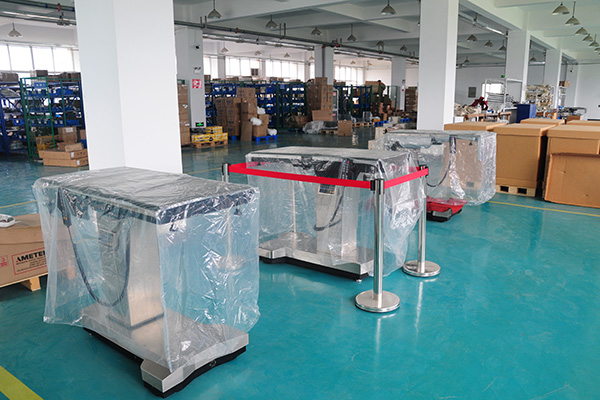

Our Factory
