TD-Q-100 Single-Arm Manual Medical Endoscopic Pendant for Hospital
Introduction
TD-Q-100 refers to a single-arm mechanical endoscopic medical pendant.
With compact structure and less space characteristics, it is an ideal nursing workstation for small hospitals and intensive care units limited by the area of the ward.
It can provide electrical transmission, gas transmission and data transmission services, and place medical equipment.
Applications
1. Operating Room
2. Emergency Room
3. ICU
4. Recovery Room
Feature

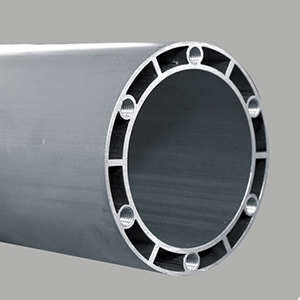

1. High-strength Aluminum Alloy
Fully enclosed arm and box are made of high-strength aluminum alloy profiles, with a minimum thickness of ≥8mm.
China Medical Pendent
2. Modular structure
It can meet future upgrade needs and easy for maintenance.
3. Gas and Electricity Separation Design
According to strict international standards, the gas and electricity zones are designed separately, ensures the power line and air supply pipeline will not be twisted or fall off accidentally due to the pendant rotation.

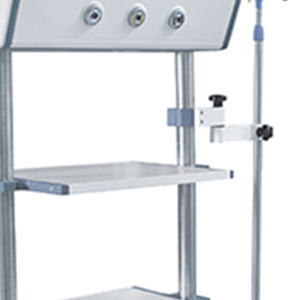

4. Instrument Tray
The instrument tray is made of high-strength aluminum alloy profiles, good bearing intensity. There are stainless steel rails on both sides for mounting other equipment. The height of the tray can be adjusted as required. Trays have protective rounded corners.
Ceiling Mounted Medical Pendant
5. Gas Outlets
Different color and shape of the gas interface to prevent wrong connection. Secondary sealing, three states (on, off, and unplug), more than 20,000 times to use. It can be maintained without air off.
China Hospital Pendant
Parameters:
Length of the arm: 600mm, 800mm, 1000mm, 1200mm
Effective working radius: 480mm, 580mm,780mm,980mm
Rotation of arm: 0-350°
Rotation of pendant: 0-350°
|
Description |
Model |
Configuration |
Quantity |
|
Single Arm Mechanical Medical Endoscopic Pendant |
TD-Q-100 |
Instrument Tray |
2 |
|
Drawer |
1 |
||
|
Oxygen Gas Outlet |
2 |
||
|
VAC Gas Outlet |
2 |
||
|
Carbon Dioxide Gas Outlet |
1 |
||
|
Electrical Sockets |
6 |
||
|
Equipotential Sockets |
2 |
||
|
RJ45 Sockets |
1 |
||
|
Stainless Steel Basket |
1 |
||
|
IV Pole |
1 |
||
|
Endoscope Bracket |
1 |
