QF-JX-300 China ICU Medical Separate Bridge Pendant Price

Short Description:

QF-JX-300 refers to ICU medical bridge pendant, which is a necessary medical rescue auxiliary equipment in modern ICU wards, mainly composed of bridge frame, dry section, and wet section.


Product Detail

Product Tags

Introduction

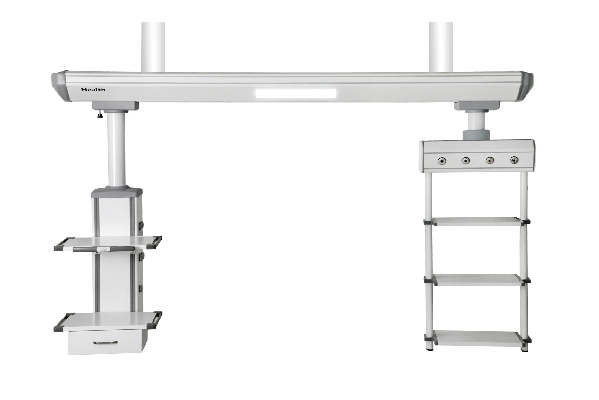

QF-JX-300 refers to ICU medical bridge pendant, which is a necessary medical rescue auxiliary equipment in modern ICU wards, mainly composed of bridge frame, dry section, and wet section.

This medical bridge pendant can be designed into two modes, dry section and wet section combined together or separated.

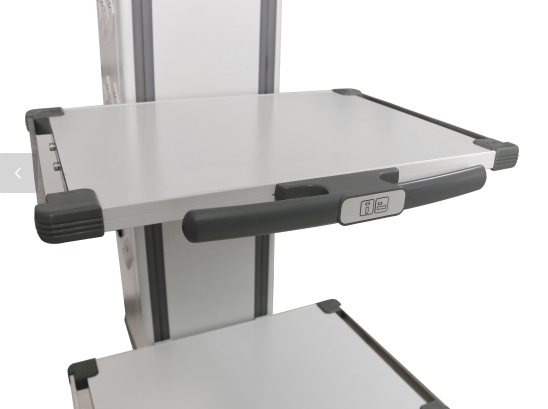

The wet section is equipped with a multi-layer instrument platform. It is equipped with a syringe pump rack and a infusion pump rod. The dry section is equipped with a multi-layer instrument platform and the drawer height is adjustable.

The medical gas, suction, power supply and network output terminals are respectively configured in the dry and wet sections within the reach of medical staff.

Applications

1. Intensive Care Room
2. Entire Wards
3. Recovery Room

Feature

1. High-strength Material

The bridge is made of high-strength aluminum alloy material. It has a strong bearing capacity.

2. Sliding Rail Design

The sliding rail design makes the tower movement more smoothly, and also makes the medical staff more labor-saving.

3. Soft LED Lightning

LED lighting sources are arranged on the beams of medical bridge pendant to provide a good working environment for medical staff.

Hospital-Pendant

Hospital-Pendant

Cheap-Surgical-Pendant

Cheap-Surgical-Pendant

Medical-Pendant-System

Medical-Pendant-System

4. Modular structure
Modular structure design can meet future upgrade needs and easy for maintenance.

5. Gas-electricity Separation Design
The gas-electricity separation design ensures safe use.
The power line and air supply pipeline will not be twisted or fall off accidentally due to the pendant rotation.

6. Durable Gas Outlets
Different color and shape of the gas interface to prevent wrong connection. Secondary sealing, three states (on, off, and unplug), more than 20,000 times to use. It can be maintained without air off.

Pendant-Medical

Pendant-Medical

Parameters:

Length of the bridge: 2200-3200mm
Movable length of the dry area: 550mm
Movable length of the wet area: 550mm
Rotation angle of the dry area: 350°
Rotation angle of the wet area: 350°
Bearing Capacity of the bridge: 600kgs
Bearing Capacity of the dry area: 280kgs
Bearing Capacity of the wet area: 280kgs

Model

Configuration

Quantities

Remarks

QF-JX-300

Instrument Tray

5



Drawer

2



Oxygen Gas Outlet

4

It depends on needs

Vacuum Gas Outlet

4

Air Gas Outlet

2

Electrical sockets

12



RJ45 Socket

2



Equipotential Sockets

4



Syringe Pump Combinat rack

1



Stainless Steel basket

2



IV Poles

1
