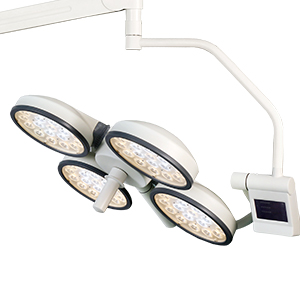

LEDB740 Wall Mount LED Operating Theatre Light with Factory Price
Introduction
LED740 Operating theatre light is available in three ways, ceiling mounted, mobile and wall mounted.
LEDB740 refers to wall mounted operating theatre light.
For operating room with purifying box, the petal type ceiling operating theatre light can avoid obstructing air flows and reduces considerably the turbulence areas in the laminar air flow. Four petals, eighty osram bulbs, provide the max illuminance of 150,000lux and max color temperature of 5000K and max CRI of 95. All the parameters is adjustable in ten levels on LCD touch screen control panel. The handle is made of new materials, resistant to high temperature and high pressure. Provide three spring arms, cheap, cost-effective, high-end luxury.
Apply to
private and public hospitals, Laboratories, clinics, etc.
Feature
1. OSRAM Bulbs with Two Colors
The operating theatre light bulbs are evenly distributed in yellow and white colors. During the adjustment process, the color temperature changes significantly. Cold light and warm light are suitable for different surgical needs.
2. Self-developed Lenses
Different from other manufacturers who buying simple lenses, we invest a lot to develop a unique lenses with better condensing performance. Each LED bulbs with its own lens, create its own light field. The overlapping of different light beam makes the light spot more uniform and significantly reduces the shadow rate.

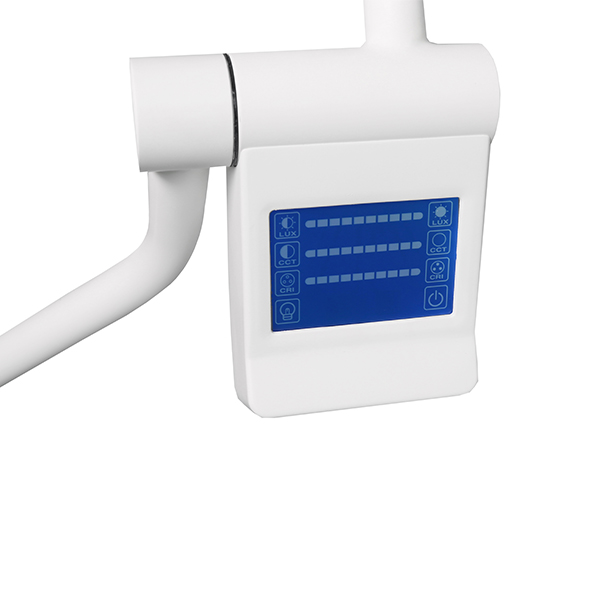

3. User-friendly LCD Touchscreen Control Panel
The color temperature, lighting intensity and color rendering index of the operating theatre light can be changed synchronously through the LCD control panel.
4. Reversible Lamp Holder
The operating theatre light head can be turned over, which solves some inspection requirements for side lighting, for example, kidney surgery
5. Designed for Low Ceiling Room
Some operating rooms have low floor height or small area, which cannot meet the space requirement for ceiling operating room. You can choose this wall type operating theatre light.
Parameters:
|
Description |
LEDB740 Operating Theatre Light |
|
Illumination Intensity (lux) |
60,000-150,000 |
|
Color Temperature (K) |
3500-5000K |
|
Color Rendering Index(Ra) |
85-95 |
|
Heat to Light Ratio (mW/m²·lux) |
<3.6 |
|
Illumination Depth (mm) |
>1400 |
|
Diameter of Light Spot (mm) |
120-300 |
|
LED Quantities(pc) |
80 |
|
LED Service Life(h) |
>50,000 |
