DB500 China Manufacturer Halogen Wall-Mount Surgical Lamp

Short Description:

D500 Halogen surgical lamp is available in three ways, ceiling mounted, mobile and wall mounted.

DB500 refers to wall mounted halogen surgical lamp.

This halogen surgical lamp contains 2400 mirrors. It can providing up to 13,000 illuminance, and high CRI over 96 and over 4000K color temperature.


Product Detail

Product Tags

Feature

1. Space Saving Design
Some operating rooms have low floor height or small area, which cannot meet the space requirement for ceiling operating room. You can choose this halogen wall mounted surgical lamp.

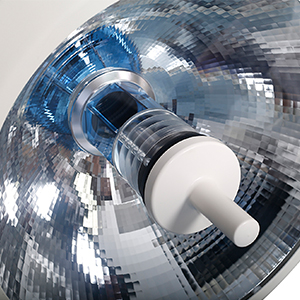

2. Quality Mirrors

The prism of the reflector is very clear, non-coated, aluminum alloy is integrally formed, the lens is not easy to fall off.
The multi-mirror reflection system minimizes the loss of light intensity and produces an illumination depth of more than 1400mm, which can obtain continuous and stable illumination from the initial incision to the deepest surgical cavity.

Wall-Mounted -Surgical-Lamp

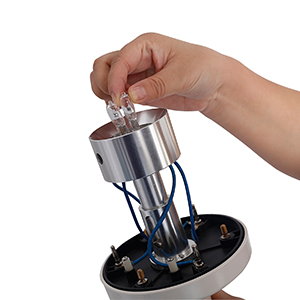

3. OSRAM Bulbs

OSRAM bulb, the service life is 1000 hours. When replacing the bulb, there is no need to open the halogen surgical lamp holder, just unscrew the handle.

Surgical-Lamp -with-Articulated -Arm

4. Effective Heat Manage System

Alloy-aluminum housing allows effective heat dissipation, which eliminates the heat at the surgeon head and the wound area.

Halogen-Stand -Surgical-Lamp

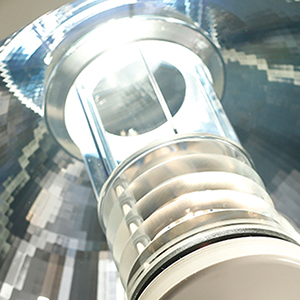

5. Medical Heat Insulation Glass

South Korea imported medical heat insulation glass, so that the temperature rise is not higher than 10 degrees, and will not cause the risk of water evaporation in the injured area.

Surgical-Lamp  -with-OSRAM-Bulbs

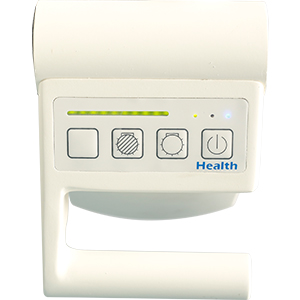

6. Control Panel

Ten-level brightness selection, brightness memory function.
The main light failure indicator, reminds to replace the bulb in time after the operation.
When the main lamp fails, the auxiliary lamp will be automatically lit within 0.3 seconds, and the light intensity and spot will not be affected.

Surgical-Lamp -with-CE -Certificates

Parameters:

Description

DB500 Wall-mounted Halogen Surgical Lamp

Diameter

>= 50cm

Illuminance

40,000- 130,000 lux

Color Temperature (K)

4200±500

Color Rendering Index(Ra)

92-96

Illumination Depth (mm)

>1400

Diameter of Light Spot (mm)

120-300

Mirrors(pc)

2400

Service Life(h)

>1,000

Certificates

Operating Room Equipment-3
